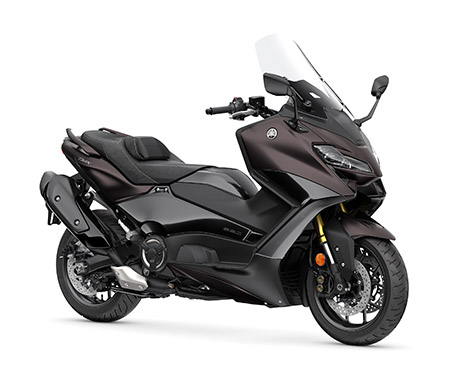

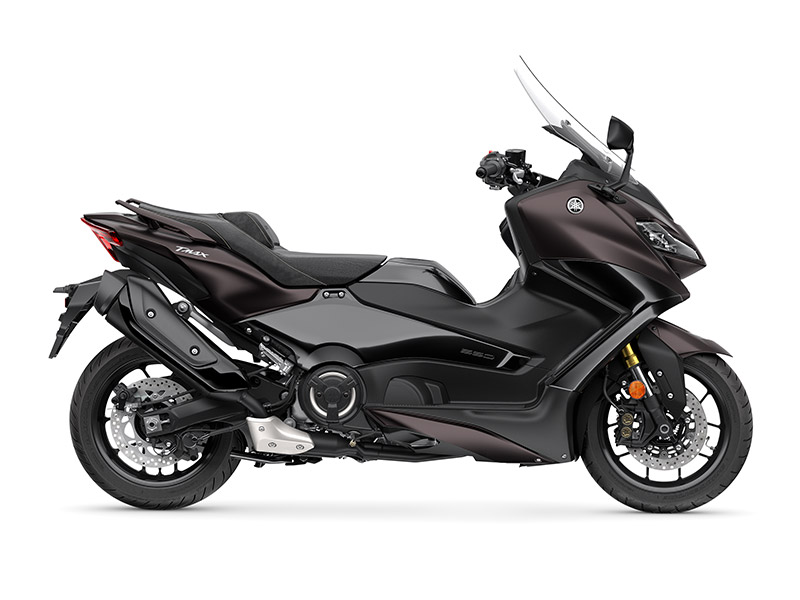

    TMAX 560

    For 2022, the TMAX has been radically uprated with a best-in-class 7-inch colour TFT screen with full smartphone connectivity – enabling you to keep in touch on every ride. Full-map Garmin Navigation* makes sure you get there on time – and with a heated seat, heated grips, electric screen and cruise control, you can enjoy business class comfort through the year.

    The newest TMAX Tech MAX also comes with an all-new compact body with a longer seat and footboards that give an even more comfortable ride. Its aggressive new face and aerodynamic front wings project a supersport-inspired look, taking the TMAX Tech MAX one step closer to the motorcycle world. And premium components and a class-leading finish confirm what you probably already knew about this iconic machine.

     (* Full-map Garmin Navigation requires a subscription service agreement and is not offered in all countries. Some navigation features are not available in all countries, please check with Garmin for availability.)



    Features

    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, DOHC, 4-valve
    • Displacement (cc) 562.0
    • Bore x Stroke (mm) 70.0 x 73.0
    • Compression Ratio 10.9 : 1
    • Lubrication System Dry Sump
    • Fuel Management Fuel Injection
    • Ignition TCI
    • Starter System Electric
    • Fuel Tank Capacity (L) 15.0
    • Final Transmission Belt
    • Transmission V-Belt Automatic
    • Frame Type Aluminium CF die-cast
    • Suspension Front Telescopic forks, 120mm travel
    • Suspension Rear Swingarm, 117mm travel
    • Brakes Front Hydraulic dual discs, 267mm - ABS
    • Brakes Rear Hydraulic single disc, 282mm - ABS
    • Tyres Front 120/70R15M/C 56H Tubeless
    • Tyres Rear 160/60R15M/C 67H Tubeless
    • Length (mm) 2195
    • Width (mm) 780
    • Height (mm) 1415 / 1525
    • Seat Height (mm) 800
    • Wheelbase (mm) 1575
    • Ground Clearance (mm) 135
    • Wet Weight (kg) 220
    • Colours
