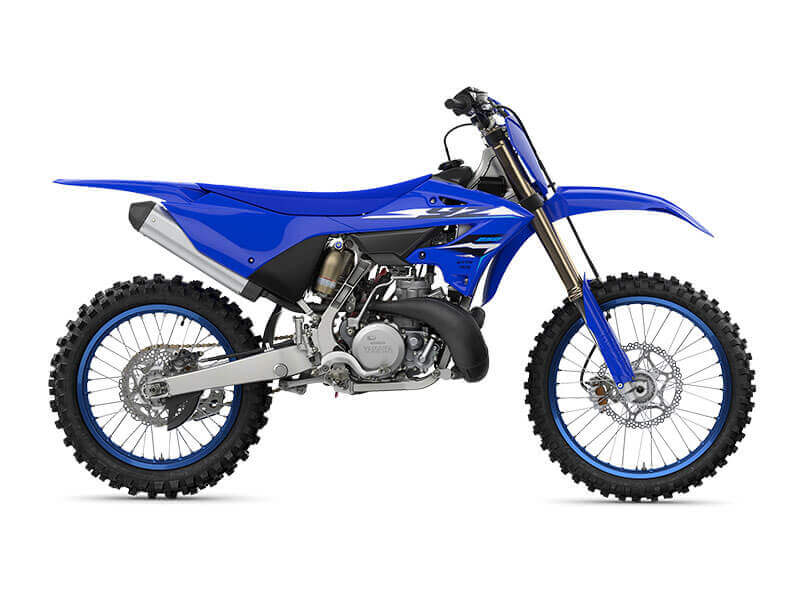

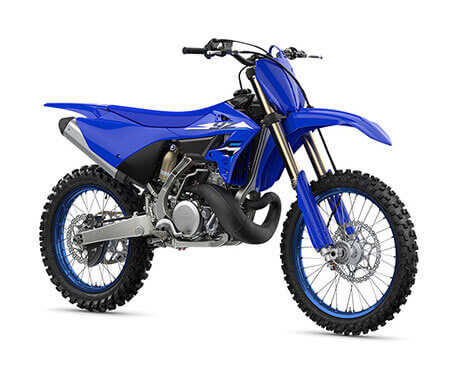

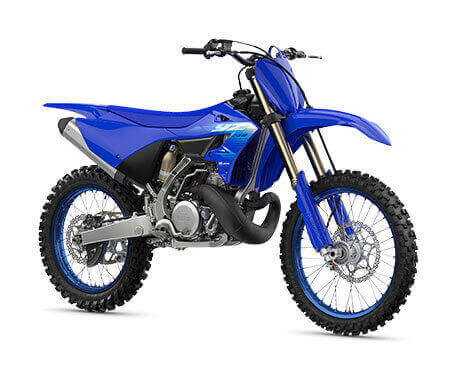

    YZ250

    If you’ve been around the dirt bike scene for a while you’ll know that the YZ250 has a super impressive track record. This thoroughbred racer has won just about everything worth winning in motocross and supercross.

    With explosive engine performance and a lightweight aluminium chassis, the YZ250 attracts a loyal following of riders who grew up with pre-mix. And it’s also caught the attention of a whole new generation of younger riders who just want to get out there and ride.

    Features

    Explosive performance

    249cc liquid-cooled reed-valve-inducted two-stroke engine is lightweight, compact and features an incredibly wide, hard hitting powerband.

    Close-ratio 5-speed

    Smooth-shifting, five-speed, close-ratio transmission with heavy-duty, multi-plate clutch.

    KYB Speed Sensitive forks

    48mm forks feature the Speed-Sensitive System with separate air/oil function that uses piston speed to control damping force for super-precise handling and a smooth ride.

    Oversize front rotor

    YZ250F-style front-brake caliper and wave type front and rear discs minimise unsprung weight and provide excellent stopping power.

    Technical Specification

    • Engine Type Liquid-cooled, 2-stroke, reed-valve with YPVS
    • Displacement (cc) 249.0
    • Bore x Stroke (mm) 66.4 x 72.0
    • Compression Ratio 8.9 - 10.6 : 1
    • Lubrication System Premix
    • Fuel Management PWK38S
    • Ignition CDI
    • Starter System Kick
    • Fuel Tank Capacity (L) 8.0
    • Final Transmission Chain
    • Transmission Constant mesh 5-speed
    • Frame Type Aluminium controlled filled semi double cradle
    • Suspension Front Telescopic forks, 300mm travel
    • Suspension Rear Swingarm (link suspension), 315mm travel
    • Brakes Front Hydraulic single disc, 250mm
    • Brakes Rear Hydraulic single disc, 245mm
    • Tyres Front 80/100-21 51M Tube type
    • Tyres Rear 110/90-19 62M Tube type
    • Length (mm) 2185
    • Width (mm) 825
    • Height (mm) 1290
    • Seat Height (mm) 970
    • Wheelbase (mm) 1485
    • Ground Clearance (mm) 360
    • Wet Weight (kg) 103
    • Colours
