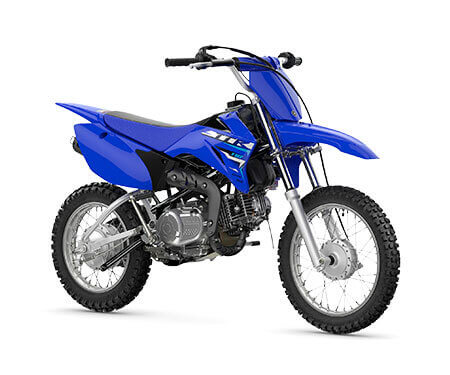

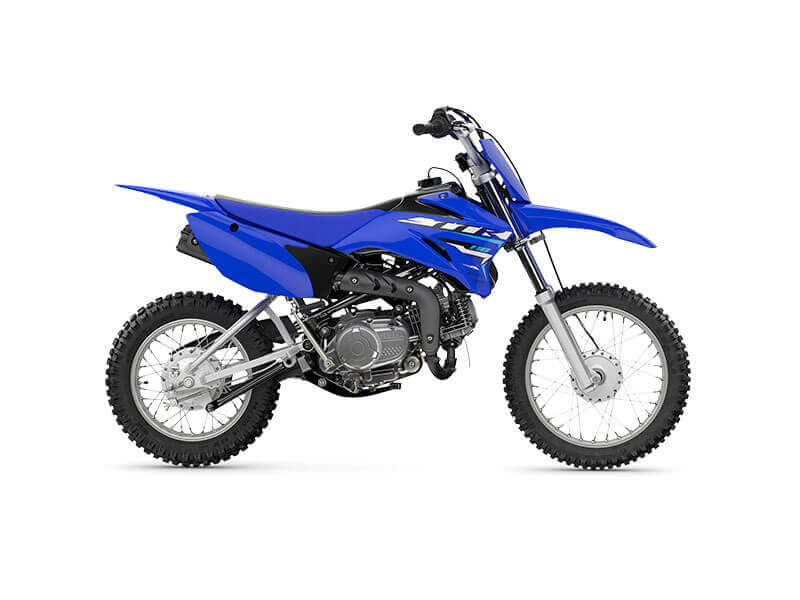

    TT-R110E

    Yamaha's leading TT-R range includes the beautifully-styled TT-R110E, which is aimed at new riders as well as those graduating from the smaller TT-R50E.

    Its radical racing-blue, motocross-style bodywork has been directly inspired by our MXGP-winning YZ race bikes. For easy steering and high levels of rider comfort, this good-looking youth bike features long-travel front and rear suspension.

    New and experienced off-road riders will love the smooth and strong performance of the 110cc 4-stroke engine, and the 4-speed semi-automatic gearbox means that there is no clutch lever for riders to worry about.

    Features

    Technical Specification

    • Engine Type Air-cooled, 4-stroke, SOHC
    • Displacement (cc) 110.0
    • Bore x Stroke (mm) 51.0 x 54.0
    • Compression Ratio 9.3 : 1
    • Lubrication System Wet sump
    • Fuel Management VM16
    • Ignition CDI
    • Starter System Electric and Kick
    • Fuel Tank Capacity (L) 4.0
    • Final Transmission Chain
    • Transmission Constant mesh 4-speed
    • Frame Type Steel tube backbone
    • Suspension Front Telescopic forks, 115mm travel
    • Suspension Rear Swingarm, 110mm travel
    • Brakes Front Drum
    • Brakes Rear Drum
    • Tyres Front 2.50-14 4PR Tube type
    • Tyres Rear 3.00-12 4PR Tube type
    • Length (mm) 1565
    • Width (mm) 680
    • Height (mm) 923
    • Seat Height (mm) 670
    • Wheelbase (mm) 1080
    • Ground Clearance (mm) 180
    • Wet Weight (kg) 72
    • Colours
