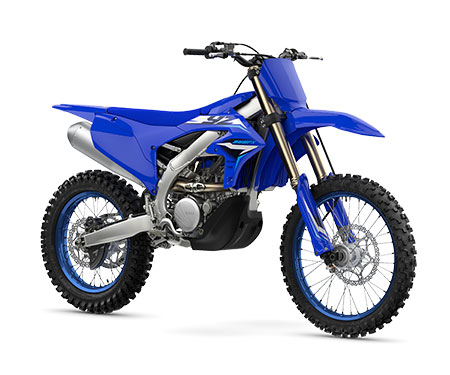

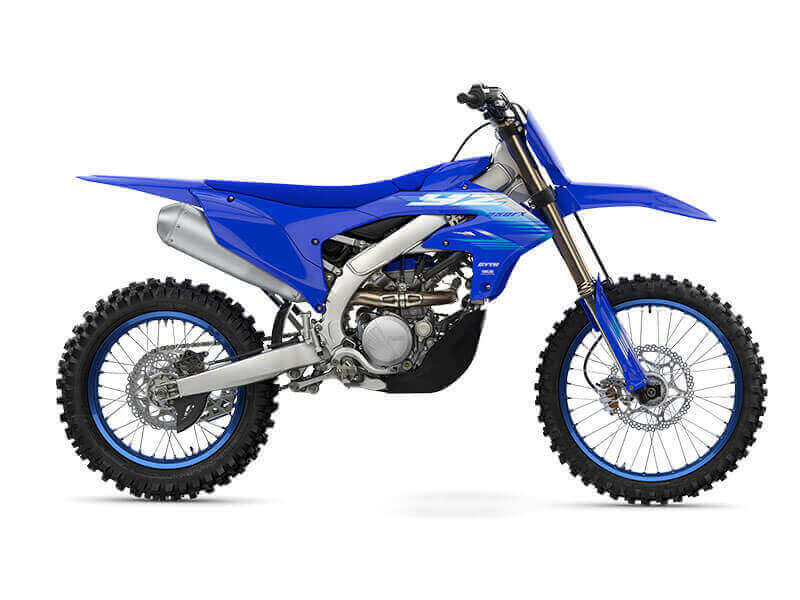

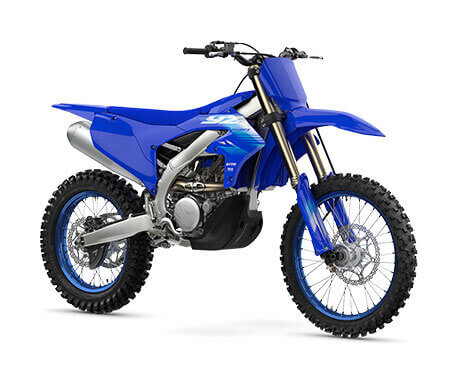

    YZ250FX

    Based on the championship-winning YZ250F, a lightweight, compact chassis offers improved agility and handling feel in tight, technical terrain, along with better ergos and a more comfortable riding position for less fatigue over greater distances.

    Yamaha's revolutionary front-intake, rear-exhaust, liquid-cooled, DOHC 4-stroke power plant is paired to a wide ratio six-speed transmission for enhanced cross country performance, making the YZ250FX ready for enduro and cross country competitions straight out of the box.

    Enquire Now

    Features

    Rearward slanted engine

    Advanced 250cc four-stroke engine features a high-spec piston, aggressive cam profiles and forward positioned intake cylinder head layout for a broad, useable powerband. An efficient down-draft intake path further boosts mid- to high-rpm engine performance.

    Bilateral beam frame

    Based on the competition-proven YZ250F, the bilateral beam frame provides just the right amount of strength and flex for the perfect balance of stability and cornering performance. The result is a better handling machine with lightweight feel and increased front wheel traction, allowing the rider to enter corners with greater confidence and more line choices.

    Slim Bodywork

    Ergonomics are optimised, with a slim, flat, compact body lending a razor thin feel and effortless body movement when shifting weight forward and back. The rider triangle is generous with sufficient space between the seat and footpegs.

    Smartphone Power Tuner App

    Yamaha Power Tuner App is even more user-friendly with intuitive Simple Tuning slide bar, helpful engine and suspension tuning guides, and additional features such as three-level selectable Traction Control System controlled through the Power Tuner App maintains ideal rear wheel traction.

    Advanced Suspension

    Yamaha’s class leading KYB suspension ensures maximum control and traction. Revised, fully adjustable KYB® coil springtype fork with speed-sensitive damping now includes hand-adjustable knob for toolless compression adjustment.

    Cross County Features

    With the electric starting system, a 7.8L fuel tank, rugged plastic skid plate, 18-inch rear wheel and XC racing tyres, the YZ250FX is ready to win right out of the box.

    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, DOHC, 4-valve
    • Displacement (cc) 250.0
    • Bore x Stroke (mm) 77.0 x 53.6
    • Compression Ratio 13.8 : 1
    • Lubrication System Wet sump
    • Fuel Management Fuel Injection
    • Ignition TCI
    • Starter System Electric
    • Fuel Tank Capacity (L) 7.8
    • Final Transmission Chain
    • Transmission Constant mesh 6-speed
    • Frame Type Bilateral beam
    • Suspension Front Telescopic forks, 300mm travel
    • Suspension Rear Swingarm (link suspension), 306mm travel
    • Brakes Front Hydraulic single disc, 270mm
    • Brakes Rear Hydraulic single disc, 240mm
    • Tyres Front 80/100-21 51M Tube type
    • Tyres Rear 110/100-18 64M Tube type
    • Length (mm) 2170
    • Width (mm) 825
    • Height (mm) 1265
    • Seat Height (mm) 955
    • Wheelbase (mm) 1470
    • Ground Clearance (mm) 330
    • Wet Weight (kg) 110
    • Colours
