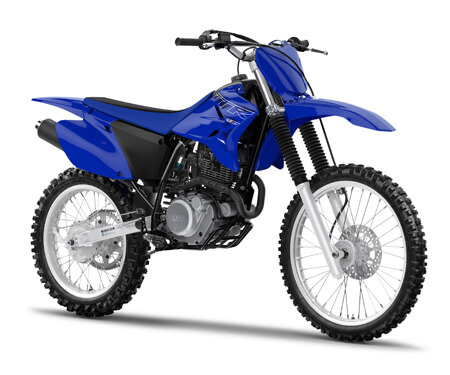

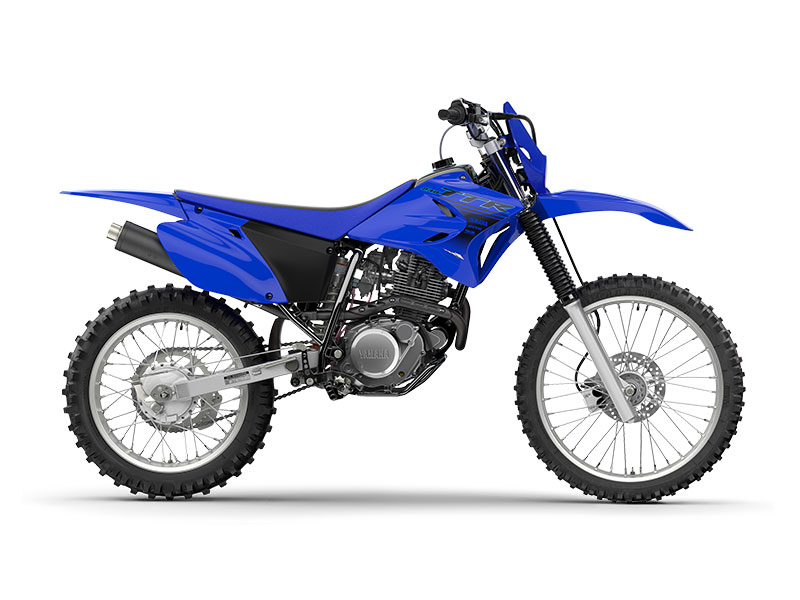

    Meet Mr – and Mrs – Versatile. YZ-inspired handling and looks, and a clockwork reliable 223cc air-cooled, SOHC four-stroke make the TT-R230 a great choice for beginner and intermediate riders.

    A competition-style flat seat / tank junction makes for great rider mobility while the push button start is a no brainer. A low seat height on top of a long-travel suspension and generous ground clearance make this a serious trail bike that's accessible to wide range of riders.

    *Headlight shown for illustrative purposes only, not standard with this model


    Technical Specification

    • Engine Type Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
    • Displacement (cc) 223.0
    • Bore x Stroke (mm) 70.0 x 58.0
    • Compression Ratio 9.5 : 1
    • Lubrication System Wet sump
    • Fuel Management Y26P x 1
    • Ignition CDI
    • Starter System Electric
    • Fuel Tank Capacity (L) 8.0
    • Final Transmission Chain
    • Transmission Constant mesh 6-speed
    • Frame Type Diamond
    • Suspension Front Telescopic forks, 240mm travel
    • Suspension Rear Swingarm (link suspension), 220mm travel
    • Brakes Front Hydraulic single disc, 220mm
    • Brakes Rear Drum
    • Tyres Front 80/100-21 51R Tube type
    • Tyres Rear 100/100-18 59R Tube type
    • Length (mm) 2065
    • Width (mm) 800
    • Height (mm) 1180
    • Seat Height (mm) 870
    • Wheelbase (mm) 1385
    • Ground Clearance (mm) 295
    • Wet Weight (kg) 114
    • Colours
