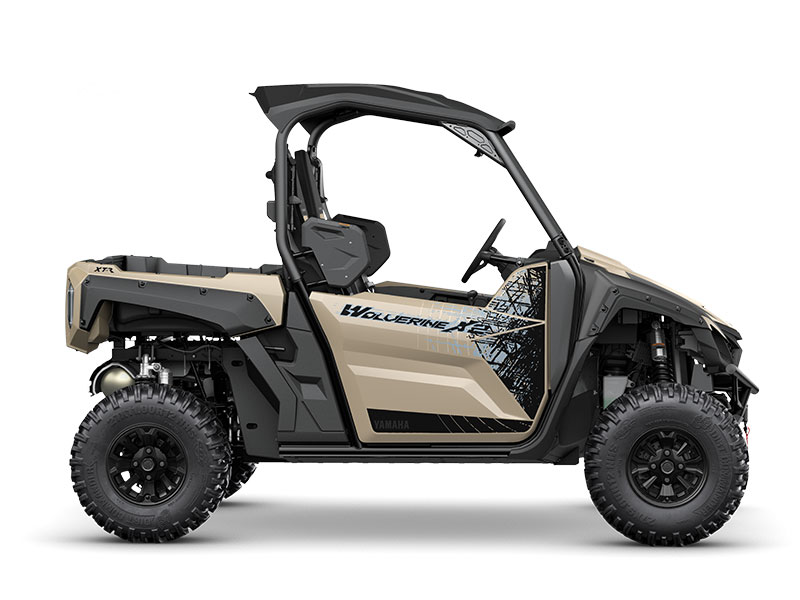

    Wolverine X2 XT-R

    The Wolverine X2 XT-R features a range of refinements that further boost capability, confidence and comfort in rough terrain. The robust new chassis is kitted out in top-shelf XT-R trim including durable 27-inch radial tyres, a WARN® VRX 4500 winch, and high-quality painted body and graphics package with colour-matched aluminium wheels.

    Power is provided by the smooth 847cc twin cylinder engine and comfort provided by high back seating with plenty of legroom.

    Wolverine X2 XT-R - when the going gets XT-Reme.

    Features

    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, DOHC, parallel twin
    • Displacement (cc) 847.0
    • Bore x Stroke (mm) 82.0 x 80.2
    • Compression Ratio 10.5 : 1
    • Lubrication System Dry sump
    • Fuel Management Fuel Injection
    • Ignition TCI
    • Starter System Electric
    • Fuel Tank Capacity (L) 35.0
    • Final Transmission Shaft
    • Transmission Ultramatic® V-belt, On-Command® 2WD, 4WD, 4WD with Diff-lock
    • Frame Type Steel tube
    • Suspension Front Independent double wishbone, 221mm wheel travel
    • Suspension Rear Independent double wishbone, 236mm wheel travel
    • Brakes Front Hydraulic dual discs
    • Brakes Rear Hydraulic dual discs
    • Tyres Front 27 x 9-12
    • Tyres Rear 27 x 11-12
    • Length (mm) 2920
    • Width (mm) 1580
    • Height (mm) 1913
    • Seat Height (mm)
    • Wheelbase (mm) 2100
    • Ground Clearance (mm) 293
    • Wet Weight (kg) 773
    • Colours
