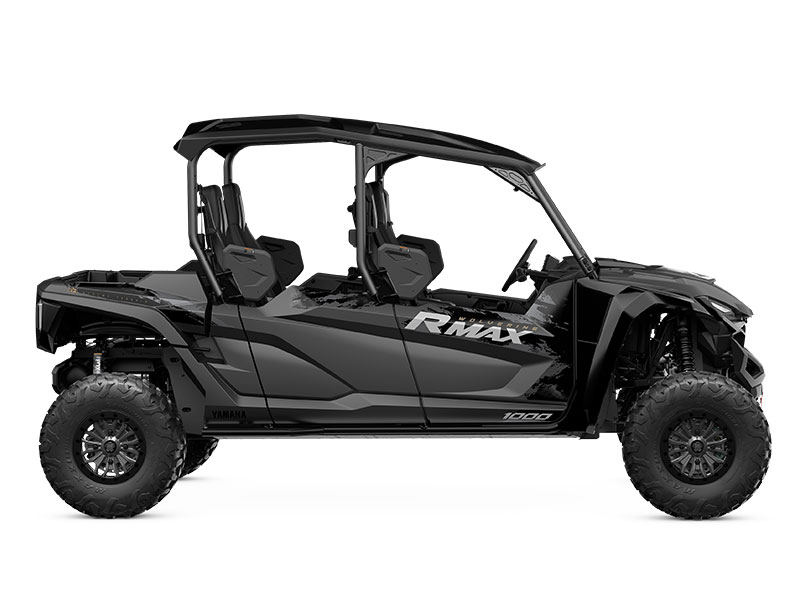

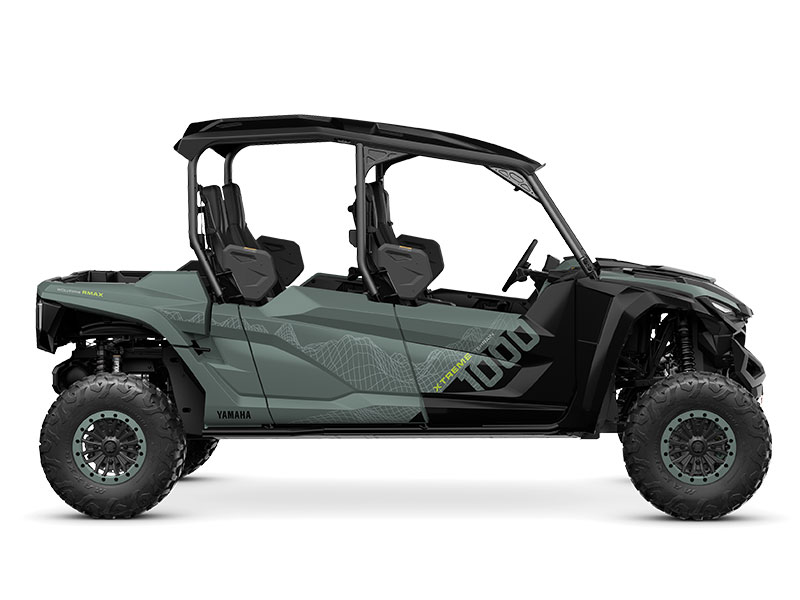

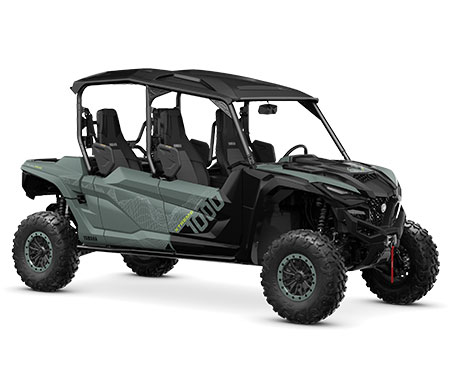

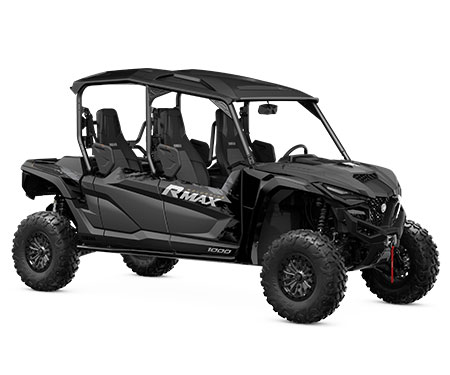

    Wolverine RMAX4 1000 XT-R

    This incredible new four-seat powerhouse is designed to venture into terrain you never thought possible – with automotive-style comfort and confidence-boosting control.

    Smooth power is produced by the class-leading new 999cc twin engine and push-button D-mode control with three drive positions – Sport, Trail and Crawl. The plush ride comes courtesy of long travel, high-performance Fox 2.0 QS3 shocks. Automotive-style luxuries will be familiar to car drivers while XT-R paint, a factory-fitted Warn winch, colour-matched wheels and aggressive Maxxis tyres combine to offer a unique, sophisticated ride.

    RMAX 4 conquers the toughest terrain in comfort.



    Three Drive Modes, One Machine

    Features

    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, DOHC, parallel twin
    • Displacement (cc) 999.0
    • Bore x Stroke (mm) 93.0 x 73.5
    • Compression Ratio 11.2 : 1
    • Lubrication System Dry sump
    • Fuel Management Fuel Injection
    • Ignition TCI
    • Starter System Electric
    • Fuel Tank Capacity (L) 34.8
    • Final Transmission On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
    • Transmission Ultramatic® V-belt, On-Command® 2WD, 4WD, 4WD with Diff-lock
    • Frame Type Steel tube
    • Suspension Front Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 360mm travel
    • Suspension Rear Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 338mm travel
    • Brakes Front Hydraulic dual discs
    • Brakes Rear Hydraulic dual discs
    • Tyres Front 29 x 9.00R-14 Maxxis Carnage
    • Tyres Rear 29 x 11.00R-14 Maxxis Carnage
    • Length (mm) 3255
    • Width (mm) 1676
    • Height (mm) 2110
    • Seat Height (mm)
    • Wheelbase (mm) 2291
    • Ground Clearance (mm) 340
    • Wet Weight (kg) 930
    • Colours
