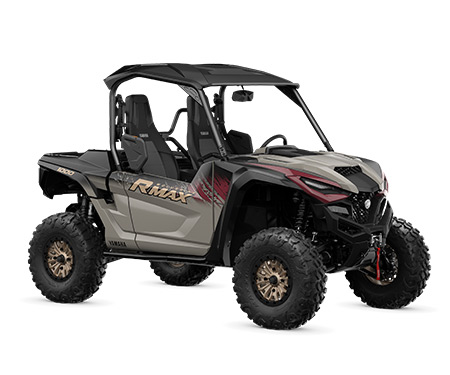

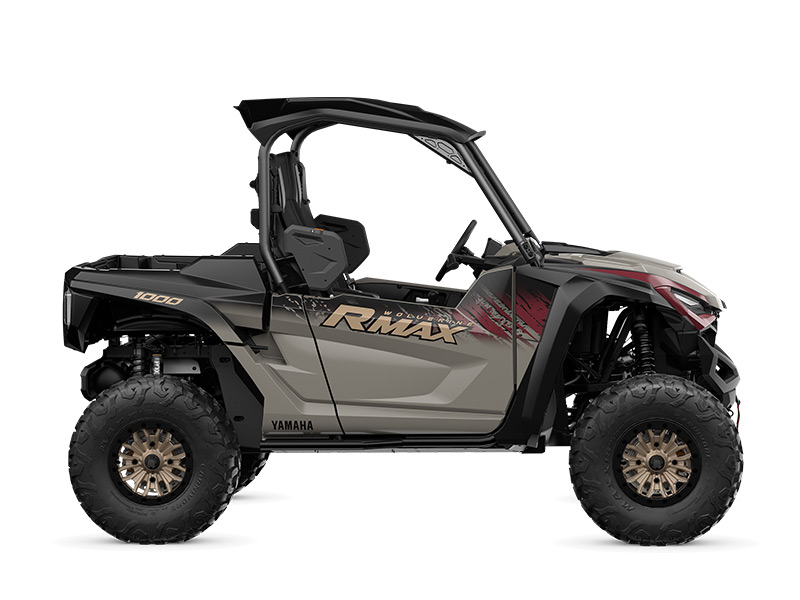

    Wolverine RMAX2 1000 XT-R

    This all-new SSV blurs the boundaries between work and play. The versatile RMAX 2 exceeds performance expectations with its powerful 999cc engine, unique D-Mode feature with Sport, Trail, and Crawl modes, long travel Fox 2.0 S3 shock absorbers, exclusive Ultramatic® transmission and aggressive Maxxis tyres.

    And when play inevitably transitions to work, RMAX 2 can handle the tough chores with long service intervals, an hydraulically-assisted tilt tray and factory-installed WARN winch.

    RMAX 2. Why settle for second best when you can enjoy the best of both worlds?


    Three Drive Modes, One Machine


    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, DOHC, parallel twin
    • Displacement (cc) 999.0
    • Bore x Stroke (mm) 93.0 x 73.5
    • Compression Ratio 11.2 : 1
    • Lubrication System Dry sump
    • Fuel Management Fuel Injection
    • Ignition TCI
    • Starter System Electric
    • Fuel Tank Capacity (L) 34.8
    • Final Transmission On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
    • Transmission Ultramatic® V-belt, On-Command® 2WD, 4WD, 4WD with Diff-lock
    • Frame Type Steel tube
    • Suspension Front Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 360mm travel
    • Suspension Rear Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 430mm travel
    • Brakes Front Hydraulic dual discs
    • Brakes Rear Hydraulic dual discs
    • Tyres Front 30 x 10.00R-14 Maxxis Carnivore
    • Tyres Rear 30 x 10.00R-14 Maxxis Carnivore
    • Length (mm) 3030
    • Width (mm) 1680
    • Height (mm) 1976
    • Seat Height (mm)
    • Wheelbase (mm) 2202
    • Ground Clearance (mm) 350
    • Wet Weight (kg) 851
    • Colours
