    Viking SE

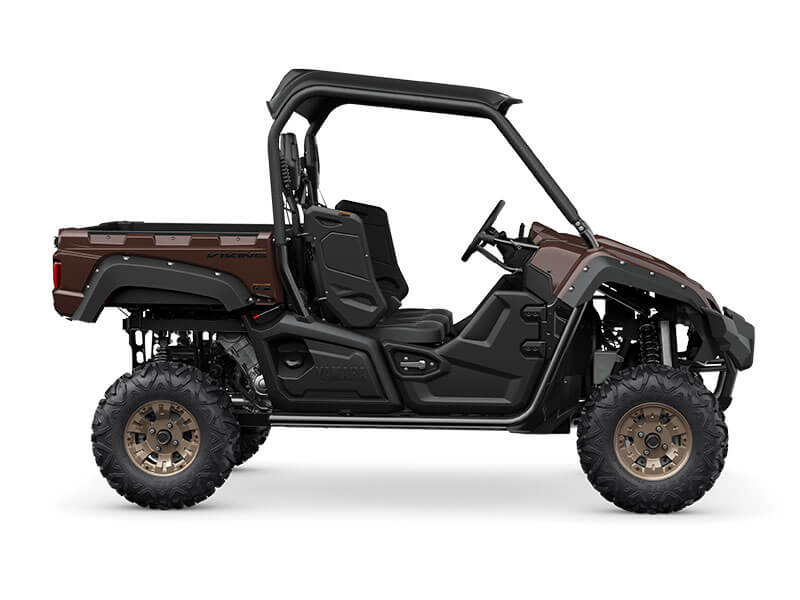

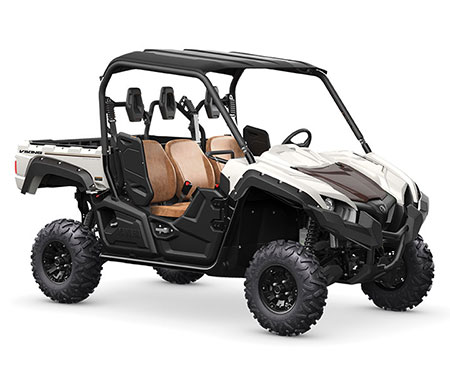

    The Special Edition Viking EPS features a smooth off‑road ride sporting new cast aluminium wheels.

    The spacious 3-seat layout and walk-through floor ensure a comfortable and safe drive for you and two colleagues. Double wishbone all wheel independent suspension is ready to take on the most rugged terrain - while the pallet sized tipping cargo bed can carry loads up to 272kg.

    Equipped with our unique Ultramatic® On-Command drive system with 2WD, 4WD and 4WD with Diff Lock, and powered by a high-torque 686cc engine, the three-seater Viking could be a stylish addition to your workforce…

    All Yamaha ATV and ROV now come with 3 year factory warranty.

    Features

    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, SOHC, 4 valve, single cylinder
    • Displacement (cc) 686.0
    • Bore x Stroke (mm) 102.0 x 84.0
    • Compression Ratio 10.0 : 1
    • Lubrication System Wet Sump
    • Fuel Management Fuel Injection
    • Ignition TCI
    • Starter System Electric
    • Fuel Tank Capacity (L) 36.7
    • Final Transmission Shaft
    • Transmission Ultramatic® V-belt with all-wheel engine braking; H, L, N, R, P
    • Frame Type Steel tube
    • Suspension Front Independent double wishbone, 205mm travel
    • Suspension Rear Independent double wishbone, 205mm travel
    • Brakes Front Hydraulic dual discs
    • Brakes Rear Hydraulic dual discs
    • Tyres Front 25 × 8-12NHS
    • Tyres Rear 25 × 10-12NHS
    • Length (mm) 3100
    • Width (mm) 1570
    • Height (mm) 1882
    • Seat Height (mm) 793
    • Wheelbase (mm) 2135
    • Ground Clearance (mm) 300
    • Wet Weight (kg) 649
    • Colours
