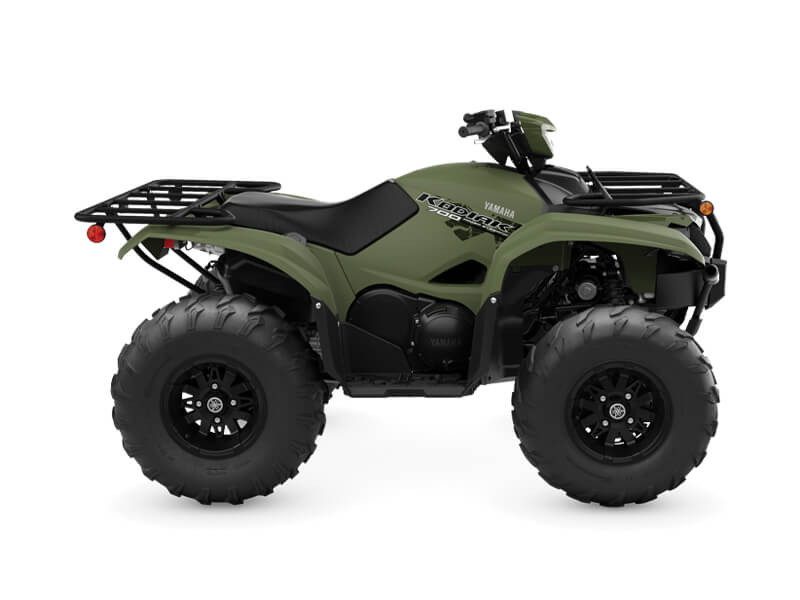

    Kodiak 700 EPS

    Designed for farmers, foresters and industrial users who need a tough utility vehicle for extreme conditions, the user-friendly Kodiak 700 delivers superior performance with outstanding value.

    Powered by a fuel efficient 686cc engine – and featuring a compact chassis with a plush seat for day-long riding comfort – this tough workhorse can carry a 140kg payload plus rider and tow up to 600kg.

    Kodiak – because work doesn’t need to be a chore.

    *Model shown with optional accessories fitted, these do not come standard.

    Features

    Powerful New Engine

    Kodiak 700 is driven by a new SOHC, 4-valve 686cc liquid-cooled engine that has been developed to produce an optimised power delivery to complement its hard working utility role. With its efficient 4-valve SOHC cylinder head and a compression ratio of 10:1, this big-single produces high levels of torque, making it the ideal workhorse for a wide range of jobs.

    Tough Four Ply Tyres

    The Kodiak's heavy duty tyres are exclusively designed 25-inch Maxxis® tyres that provide precise steering, optimise comfort and maximise available traction.

    On-Command 4WD

    The three-position On-Command® 4WD system lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD all with the simple push of a button. Override button allows engine to reach maximum rpm in full diff lock mode.

    Powerful Reliable Braking

    The front end of the Kodiak 700 is equipped with dual hydraulic disc brakes that provide powerful and effective stopping performance with plenty of feel, allowing the rider to maintain precise control on all types of terrain, with a newly designed rear sealed wet brake system. The rear brake is operated by the left handlebar lever and also the right side foot pedal, giving the rider high levels of control.

    Work Light Equipped

    For safer and easier night-time working and riding, the Kodiak 700 comes equipped with a centrally mounted halogen work light.

    Big Towing Capacity

    In addition to the Kodiaks 140kg carrying capacity it can tow another 600kg across extreme terrain with its impressive torque. Accessory two inch hitch shown.

    Comfortable Seat

    Seat is long and plush, improving rider comfort for extended work days or trail exploring.

    Electric Power Steering

    For added comfort and reduced physical effort the Kodiak 700 EPS is equipped with Electronic Power Steering (EPS) that has been designed to offer the best balance of rider assist and positive feedback. By maintaining light steering and precise handling, this rack and pinion system enhances rider comfort, confidence and control, and also maximises this big-bore ATV’s off road capabilities.

    Front and Rear Racks

    This big-single produces high levels of torque, making it the ideal workhorse for a wide range of jobs. The class-leading power output enables the Kodiak 700 to transport its rider plus 140kg of cargo on the racks - 50kg at the front and 90kg at the rear - making it the clear choice for farmers, foresters and industrial users. Durable wrinkled-finish carry bar resists scratching.

    Long Travel Suspension

    The Kodiak 700 is equipped with a rugged new chassis whose compact dimensions are ideally suited to the demands of the utility rider who may be mounting and dismounting regularly. For easy manoeuvrability over a variety of terrain, the new chassis features compact independent double wishbone A-arms and newly designed KYB shock absorbers, with 180mm travel front and 230mm rear.

    Long Range Fuel Tank

    An optimised 18 litre fuel tank is located under the seat for excellent mass centralisation and handling.

    Stylish Bodywork

    Kodiak 700 is equipped with stylish new bodywork that gives it a purposeful and functional front face to complement its rugged and hard-working character. The newly designed front grill and front carry bar and carry bar cover convey a rugged no-nonsense appearance that underlines the Kodiak 700's tough utility specification. The injection-molded fenders protect against rock and debris damage.

    Ultramatic Transmission

    Kodiak 700’s Ultramatic® transmission features a gated shifter, dual- range plus reverse gear and is the most advanced drive system available. Additionally, the gear ratio and Kodiak-specific CVT settings are designed to lower engine RPM and provide a smooth, easy-to-use power character. The Ultramatic transmission maintains constant belt tension and natural all-wheel engine braking.

    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, SOHC, 4-valve, single cylinder
    • Displacement (cc) 686.0
    • Bore x Stroke (mm) 102.0 x 84.0
    • Compression Ratio 10.0 : 1
    • Lubrication System Wet sump
    • Fuel Management Electronic Fuel Injection
    • Ignition TCI
    • Starter System Electric
    • Fuel Tank Capacity (L) 18.0
    • Final Transmission Shaft
    • Transmission Ultramatic® V-belt with all-wheel engine braking; H, L, N, R, P
    • Frame Type Steel tube
    • Suspension Front Independent double wishbone, 180mm travel
    • Suspension Rear Independent double wishbone, 230mm travel
    • Brakes Front Hydraulic dual discs
    • Brakes Rear Wet multiple disc
    • Tyres Front AT25 × 8-12
    • Tyres Rear AT25 × 10-12
    • Length (mm) 2070
    • Width (mm) 1180
    • Height (mm) 1240
    • Seat Height (mm) 860
    • Wheelbase (mm) 1250
    • Ground Clearance (mm) 275
    • Wet Weight (kg) 307
    • Colours
