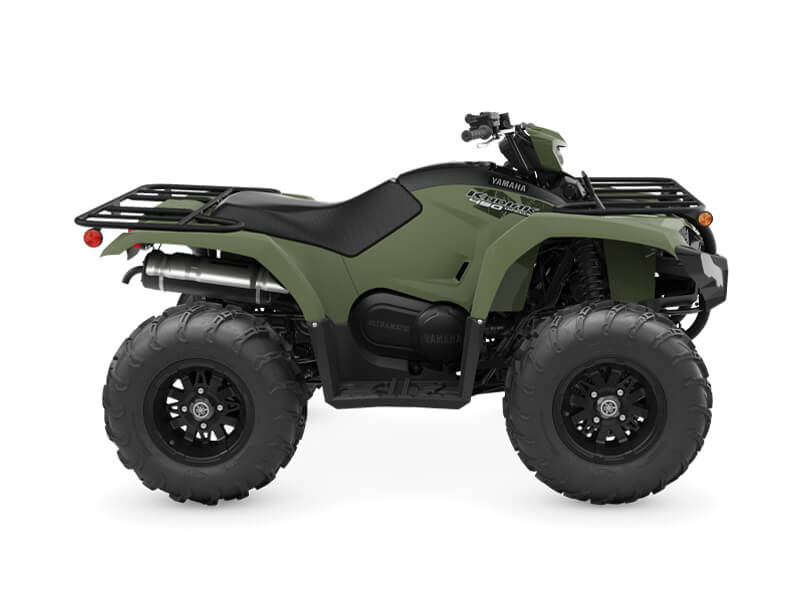

    Kodiak 450 EPS

    There’s no rest for the man on the land. From rugged wooded valleys to vast green pastures there’s always the next job to be done. Their ATVs need to be as tough as they come yet comfortable enough to get you through the day.

    Introducing the fuel injected 4WD Kodiak 450 with electric power steering (EPS). With it’s all new styling, new chassis, wider track and long travel suspension the Kodiak 450 boosts your comfort and confidence with improved nimble handling and ride catering for a variety of size and skill levels.

    The Kodiak 450 is focused on the highest level of capability, providing more Control, Comfort, Confidence and Convenience.



    Features

    Heavy Duty Tyres

    Beefy 25-inch tyres feature an aggressive tread pattern and provide a balance of precise steering and optimized comfort to make the most of available traction. The new Kodiak tyres are wider than previous models giving you the control and confidence of sure footed traction.

    LCD Instrument Cluster

    A compact all-LCD instrument cluster gives the rider a clear picture of speed, transmission status, fuel level and more, in a modern and compact package.

    Wider Track

    Unlike many middleweight utility ATVs, Kodiak 450 EPS isn’t just a smaller engine under a full-size body. Yamaha built the Kodiak 450 EPS from the ground up to give riders a compact chassis for precise handling and maneuverability on the trail. The Kodiak 450 has a wider track, longer wheelbase, wider tyre tread resulting in improved rider control, confidence and safety

    Class Leading Brakes

    Hydraulic front disc brakes serve up powerful and consistent feel and braking performance to add to rider confidence, while the sealed rear brake is protected from dirt, rocks and mud.

    Yamaha On-Command 4WD

    The three-position On-Command® 4WD system lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD all with the simple push of a button. An override button allows engine to reach maximum rpm in full diff lock mode, and a straight driveshaft layout eliminates U-joints for reduced friction, noise, vibration, and maintenance.

    Long Travel Suspension

    The Kodiak 450 EPS features independent double wishbone suspension for an optimised vehicle stance, light steering feel, and improved feeling from the shocks across the entire range of travel. With 170mm of front wheel travel and 188mm at the rear, Kodiak 450 EPS provides excellent rider comfort even in the roughest terrain.

    More Comfortable Seat

    Kodiak 450 EPS offers a riding position with the same roomy feel as the larger Kodiak 700. With tall handlebars and a seat that is long and plush for improves rider comfort for extended work days.

    Larger Floorboards

    Kodiak 450 EPS offers large textured floorboards is one example of how every aspect of the Kodiak 450 EPS was designed to bring class-leading levels of refinement to the middleweight 4x4 ATV segment.

    Rubber Engine Mounts

    Kodiak 450 EPS features newly developed rubber engine mounts that isolate vibrations from the engine bay and give the rider one of the smoothest rides ever offered in a utility ATV.

    Electric Power Steering

    Yamaha’s Electric Power Steering provides the industry’s best balance of steering assist and positive feedback by checking gear position, 4WD mode and speed to match terrain conditions in real time.

    All Wheel Downhill Engine Braking

    Yamaha’s Ultramatic system earns its place as the most reliable transmission in the market. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and a sprag clutch provides Yamaha’s renowned all-wheel engine braking.

    Front A-Arm Guards

    Exclusive to Australia and New Zealand the Kodiak 450 is fitted with tough plastic front A-Arm guards to protect from rocky technical terrain.

    Full Length Skid Plates

    A full length protective skid plate with easy access service points allows easy servicing and maintenance without removing the skid plate.

    Marine Grade Electrical System

    Yamaha ATVs feature marine-grade waterproof connectors for maximum weather-proofing, maximizing durability and improving serviceability, too.

    Simplified Servicing

    The Kodiak 450 EPS powertrain is designed to make service and maintenance as stress-free as possible. The airbox features tool-less access to the air filter element, the engine and differential feature convenient oil drain holes, and vehicle electronics are located high on the chassis, under the front center panel, for easy access.

    Efficient Power Output

    Kodiak 450 EPS features a torquey 421cc SOHC engine designed to provide a balance of responsive power and smooth character for long riding days with minimal fatigue. Mikuni® fuel injection means easy cold starts and flawless fuel delivery in nearly any condition, while liquid-cooling and a high-volume fan system ensure reliable, consistent performance for years to come.

    Handlebar Mounted Work Light

    Kodiak 450 EPS owners also get added visibility and extra illumination, courtesy of the additional halogen work light mounted on the handlebar, under a body-color-matched cowl.

    12 Volt Output

    A standard 12V power port makes it easy to keep devices charged over the course of a long riding day.

    Large Capacity Steel Racks

    Rugged, large-diameter steel cargo racks with durable wrinkle paint finish can pack a total of 120kg combined. A heavy-duty ball mount comes standard and Kodiak 450 EPS can tow more than 600kg.

    Under Seat Storage

    The seat can be easily removed to access the new sealed storage area for added items during your ride.

    Prewiring For Winch

    With winch wiring pre-installed at the factory, and a range of Genuine Yamaha Accessories designed in concert with the machine, Kodiak 450 EPS is ready to be configured to suit nearly any job, from towing and field work to hunting and recreational riding.

    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, SOHC, 4-valve, single cylinder
    • Displacement (cc) 421.0
    • Bore x Stroke (mm) 84.5 x 75.0
    • Compression Ratio 10.0 : 1
    • Lubrication System Wet sump
    • Fuel Management Single Mikuni 34mm
    • Ignition TCI
    • Starter System Electric
    • Fuel Tank Capacity (L) 14.0
    • Final Transmission Shaft
    • Transmission Ultramatic® V-belt with all-wheel engine braking; H, L, N, R, P
    • Frame Type Steel tube
    • Suspension Front Independent double wishbone, 171mm travel
    • Suspension Rear Independent double wishbone, 189mm travel
    • Brakes Front Hydraulic dual discs
    • Brakes Rear Wet multiple disc
    • Tyres Front AT25 x 8-12
    • Tyres Rear AT25 x 10-12
    • Length (mm) 2035
    • Width (mm) 1180
    • Height (mm) 1160
    • Seat Height (mm) 855
    • Wheelbase (mm) 1240
    • Ground Clearance (mm) 245
    • Wet Weight (kg) 295
    • Colours
