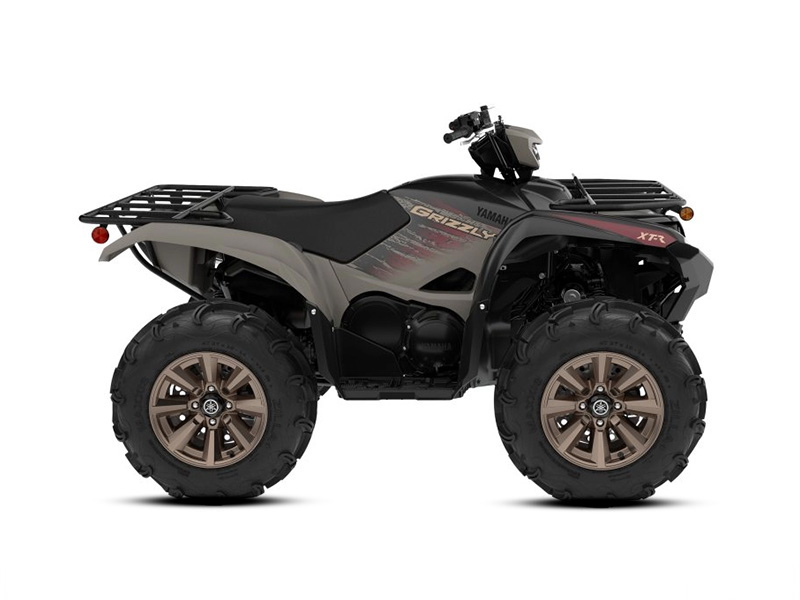

Grizzly 700 SE

Name: YFM700FAPSER_NZ
Brand: Yamaha
Price: 19599.00 NZD

Yamaha's tough Grizzly EPS glides over the harshest terrain and the Camo model bristles with features aimed at the outdoorsman.

A torque-rich 686cc engine, sturdier steel cargo racks to carry home the bacon, LED lights and a halogen work light for even more night time fun. And the new Maxxis 26-inch tyres give immense traction and durability.

Featuring Yamaha's Ultramatic® transmission and On-Command® drive system - together with Electronic Power Steering - the Grizzly 700 Camo gives you class leading performance, style and functionality - all wrapped up in a trick package.

All Yamaha Utility ATV and ROV come with a 3-year factory warranty.

MY24 Ride Away Price

^$ 19,599.00

EXC GST

Ride away price is based on the manufacturer’s recommended retail price (MRRP) for a private buyer, 6 months registration, Pre- Deliver Inspection (PDI) and recommended dealer delivery fee. For non-road registerable models, ride away price includes the PDI and dealer delivery fee. Actual ride away price may differ depending on choice of dealer and individual circumstances. Government fees and charges may apply. Contact your local Yamaha dealer to confirm pricing. Yamaha reserves the right to vary the ride away price at any time.

Enquire Now

Features

Powerful 686cc 4-stroke engine

Grizzly now runs a liquid-cooled 686cc engine with improved engine response and lower vibration, noise and fuel consumption. A number of internal engine changes have been made including revised bore and stroke dimensions, a low friction plated cylinder – was cast iron - and the cast piston is now a forged item. A new air intake improves engine output especially in the key mid-range area while redesigned engine mounts make for even smoother running.

Yamaha Ultramatic transmission

Yamaha’s Ultramatic transmission now features different CVT weights and gear ratios to suit each model. The system continues to feature a gated shifter, dual range (Hi/Lo) drive plus reverse gear, and is the most advanced — and durable — CVT drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and a sprag clutch delivers natural all-wheel engine braking.

14 Inch Alloy Wheels

The Grizzly Special Edition alloy wheels are larger than the 12-inch units fitted to the standard and Camo Grizzly models, and are mounted with 27 inch Maxxis Zilla tyres for increased traction.

Optional WARN Winch

Genuine Yamaha Accessory option, WARN Pro Vantage 2500 winch is a welcome addition for riders who want to get off the beaten track.

Extensive Cargo Capacity

Rugged, large-diameter steel cargo racks with durable wrinkle paint finish can pack a total of 140kg combined (50kg. front, 90kg rear). Three on-board storage compartments keep things secure. Centre-mounted, heavy-duty two-inch receiver comes standard on Grizzly EPS and can tow more than 590kg.

Sharp Styling

LED technology uses less power, creates brighter, sharper illumination, and offers lifetime durability. A handlebar-mounted halogen work light provides additional illumination that moves with rider input for excellent visibility.

Four-Wheel Hydraulic Disc Brakes

Powerful and consistent braking comes standard on every Grizzly 700, thanks to four-wheel hydraulic disc brakes with unmatched braking feel.

Full coverage lightweight skid plates

The Grizzly is equipped with durable new lightweight plastic skid plates that protect the underside at the front and rear. These skid plates benefit from recessed mounting points that give a smooth surface to minimise the chance of being snagged on rough and technical terrain.

New digital LCD multi-function instruments

The easy to read large LCD multi-function instruments feature a fuel gauge, speedometer, odometer, dual trip meters, hour meter, clock, 4WD/Diff Lock status, transmission gear selector and EPS warning light. The newly designed meter is located closer to the rider so that accurate machine status can be viewed quickly. For added convenience there is a 12V DC outlet to power accessories.

Yamaha On-Command 4WD

The three-position On-Command® 4WD system lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD all with the simple push of a button. An override button allows engine to reach maximum rpm in full diff lock mode, and a straight driveshaft layout eliminates U-joints for reduced friction, noise, vibration, and maintenance.

Speed Sensitive Electric Power Steering

For added comfort and reduced physical effort the Grizzly 700 SE is equipped with Electronic Power Steering (EPS) that has been designed to offer the best balance of rider assist and positive feedback. By maintaining light steering and precise handling, this rack and pinion system enhances rider comfort, confidence and control, and also maximises this big-bore ATV's off road capabilities.

Underseat fuel tank

To facilitate the fitment of the new easy-access air filter and new centre storage compartment, the fuel tank on the Grizzly 700 SE is relocated to a new position under the seat - whereas previously it was positioned further forwards and above the engine. Featuring the fuel filler on the right side rear fender, this 18-litre tank gives a good operating range.

Independent Long-Travel Adjustable Suspension

Independent double wishbone suspension, with 193mm of front wheel travel and 231mm at the rear, provides excellent rider comfort even on the toughest trails, thanks to nitrogen-charged shocks with 5-way adjustable preload.

Technical Specification

Engine Type Liquid-cooled, 4-stroke, SOHC, 4-valve, single cylinder
Displacement (cc) 686.0
Bore x Stroke (mm) 102.0 x 84.0
Compression Ratio 10.0 : 1
Lubrication System Wet sump
Fuel Management Electronic Fuel Injection
Ignition TCI
Starter System Electric
Fuel Tank Capacity (L) 18.0
Final Transmission Shaft
Transmission Ultramatic® V-belt with all-wheel engine braking; H, L, N, R, P

Frame Type Steel tube
Suspension Front Independent double wishbone, 193mm travel
Suspension Rear Independent double wishbone, 232mm travel
Brakes Front Hydraulic dual discs
Brakes Rear Hydraulic dual discs
Tyres Front AT27 x 10-14
Tyres Rear AT27 x 10-14

Length (mm) 2070
Width (mm) 1230
Height (mm) 1253
Seat Height (mm) 930
Wheelbase (mm) 1253
Ground Clearance (mm) 288
Wet Weight (kg) 354
