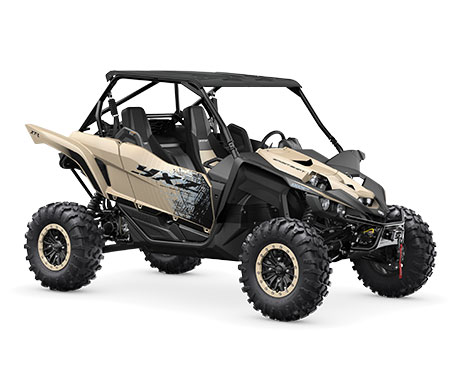

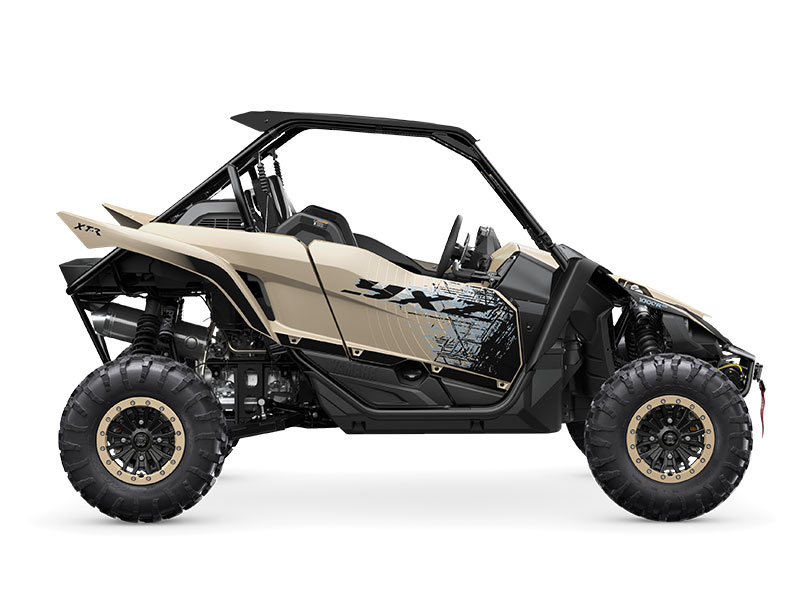

    YXZ1000R SS XT-R

    The YXZ1000R SS XT-R is the most focused, high-performance SSV in the world. Every system on board ensures the highest level of performance in all terrains - from dunes and deserts to tight woods and muddy trails.

    A range of stylish, high-spec components are specified including advanced FOX® Dual Spring suspension, beadlock rims wrapped in Yamaha-exclusive Maxxis® Carnage™ tyres, and enhanced underbody protection.

    Upgraded centreline lighting provides enhanced visibility. A custom front grab bar mounts a heavy duty WARN® winch package with integrated driver controls while the composite suntop, high-quality painted bodywork, contrast-stitched seats and auxiliary lights complete the package.

    Features

    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, DOHC, 4-valve, 3-cylinder
    • Displacement (cc) 998.0
    • Bore x Stroke (mm) 80.0 x 66.2
    • Compression Ratio 11.3 : 1
    • Lubrication System Dry sump
    • Fuel Management Fuel Injection
    • Ignition TCI
    • Starter System Electric
    • Fuel Tank Capacity (L) 34.0
    • Final Transmission Shaft
    • Transmission Constant mesh 5 speed, paddle shift, auto clutch, with reverse
    • Frame Type Steel tube
    • Suspension Front Independent double wishbone with anti-sway bar, 411mm travel
    • Suspension Rear Independent double wishbone with anti-sway bar, 432mm travel
    • Brakes Front Hydraulic dual discs
    • Brakes Rear Hydraulic dual discs, shaft mounted park brake
    • Tyres Front 29 x 9.00R-14
    • Tyres Rear 29 x 11.00R-14
    • Length (mm) 3121
    • Width (mm) 1626
    • Height (mm) 1834
    • Seat Height (mm) 640
    • Wheelbase (mm) 2300
    • Ground Clearance (mm) 330
    • Wet Weight (kg) 709
    • Colours
