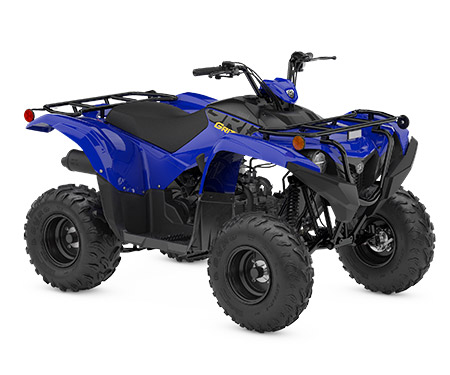

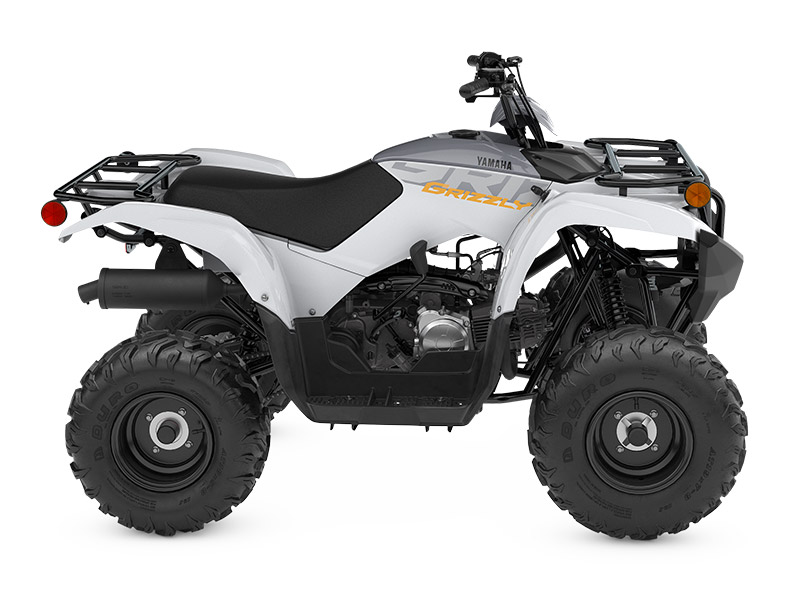

    Grizzly 90

    The Grizzly 90 is built to bring maximum fun for young ATV riders ages 10 and up. The low-maintenance 90cc engine is tuned to deliver excellent low- to mid-range performance, while the fully automatic CVT transmission with reverse, gated shifter and back-up kickstart all come standard.

    With convenient features like electric-start, a large comfortable  seat, front/rear racks and aggressive styling, the Grizzly 90 is the perfect machine for riders who want to REALise Adventure with family and friends.



    Features

    Robust 90cc Engine

    The Grizzly 90’s four-stroke SOHC 90cc engine is tuned to develop excellent low- to mid-range performance. The engine is air-cooled for simplicity, performance and long service life, and utilises proven wet-sump lubrication.

    Automatic Transmission

    Fully automatic, continuously variable transmission (CVT) means no shifting. Handy for all riders, full auto is feature that young entry level riders love. And standard reverse simplifies turning the Grizzly 90 in tight spots.

    Full Comfort

    The Grizzly 90 is designed to be comfortable for a wide variety of riders ages 10 years and older. With its large and plush seat matched to wide floorboards, riders will enjoy years of riding as they hone their off-road riding skills.

    Integrated Cargo Racks

    Robust steel cargo racks front and rear both boast 5kg carrying capacity and give younger riders the ability to pack their own gear as they join the family on their next adventure.

    Upright Ergonomics

    The Grizzly 90 features a tall handlebar and increased seat-to-peg distance to give riders a comfortable, upright riding position for excellent control feel and great trail visibility.

    Grizzly Styling

    The Grizzly 90 takes cues from the top-performing big bore Grizzly but is designed specifically for younger riders getting into the sport. The result is accessible, confidence-inspiring performance with Grizzly family style.

    Technical Specification

    • Engine Type Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
    • Displacement (cc) 89.9
    • Bore x Stroke (mm) 47.0 x 51.8
    • Compression Ratio 9.2 : 1
    • Lubrication System Wet sump
    • Fuel Management H66D x 1
    • Ignition CDI
    • Starter System Electric and Kick
    • Fuel Tank Capacity (L) 6.6
    • Final Transmission Chain
    • Transmission V-belt automatic, F, N, R
    • Frame Type Steel tube
    • Suspension Front Single A-arm, 126mm travel
    • Suspension Rear Swingarm, 145mm travel
    • Brakes Front Dual drums
    • Brakes Rear Drum
    • Tyres Front AT19 x 7-8
    • Tyres Rear AT18 x 9-8
    • Length (mm) 1562
    • Width (mm) 1031
    • Height (mm) 1005
    • Seat Height (mm) 730
    • Wheelbase (mm) 1032
    • Ground Clearance (mm) 210
    • Wet Weight (kg) 139.6
    • Colours
