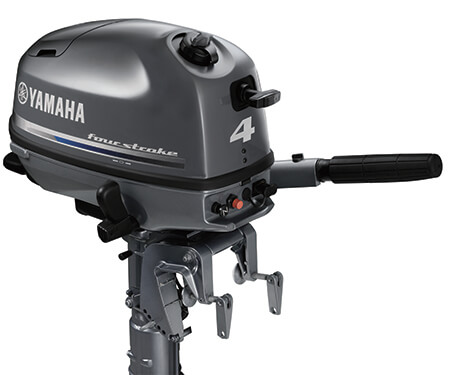

Lightweight, compact and economical, Yamaha’s single-cylinder portable F4 has been designed to be ultra-easy to use and transport. Featuring a specially developed four stroke, Overhead Valve (OHV) design, this engine delivers excellent fuel efficiency and smooth running. Attention to detail makes this Yamaha small engine great by delivering a user experience that stands head and shoulders above anything else.
jump to
F4
Priced from
$
2,310.00
Recommended Retail / Incl GST
Advertised price is based on the manufacturer’s recommended retail price (MRRP) for the base model outboard, excluding rigging, prop, and fitting. Pricing is for a private buyer, including GST. Contact your local Yamaha dealer to confirm model and fully fitted pricing. Yamaha reserves the right to vary the MRRP price at any time.
Features
139cc Single-Cylinder
The twin valve, single-cylinder, compact four-stroke engine produces clean exhaust gas with high combustion efficiency.
180° Steering
With a full 90° left and right turning circle, this engine makes turning and manoeuvring around docks and other vessels, simple and easy.
Three-Way Storage Positions
With the special leak-free oil storage system and tuck away tiller handle, you can safely lie the engine on its front, right or left-hand side, for convenient transportation and storage.
Built-in See Through Fuel Tank
The handy 1.1 Litre built-in fuel tank is extremely convenient for transport and allows uncluttered deck space in small boats. The semi-transparent tank makes it easy to fill and easy to check remaining fuel supply. A built in, internal primer pump allows for easy pull starting.
Oil Leak Prevention System
Yamaha's oil leak prevention system allows the engine to be stored safely on its front, left or right-hand side. This means you no longer have to worry about oil leakage while transporting this engine or holding it in storage.
Easy Start Decompression Device
This engine features an auto decompression device fitted to the camshaft for easier pull starting. This system releases pressure in the cylinder when the manual pull start is engaged, allowing for light and convenient pull starting.
Ergonomic Carry and Control Handles
Large comfortable grips located on the front and back of the engine makes carrying, mounting and removing this engine easier. The tiller handle folds neatly back to make the engine even more compact for carrying and storage.
External Fuel Tank Tap
For increased range and convenience this engine includes a switch-over facility which allows for the quick connection of an additional external fuel tank, should it be required.
Anti Corrosion Paint System
Yamaha engines are known for their durability and high re-sale value. Part of this lies in the anti-corrosion protection systems. A unique YDC-30 aluminium alloy and 5-stage exterior paint protects the engine's exterior parts, while high-quality, marine-grade, stainless steel componentry is used throughout.
Two-Way Throttle Control
Throttle is controlled by a two-way cable rather than relying on a traditional throttle return spring. This ensures long term durability, added safety and an enhanced feeling of immediate control.
Technical Specification
- Engine Type 4-Stroke, OHV, 1-cylinder
- Bore x Stroke (mm) 62 x 46
- Fuel Tank Capacity (l) 1.1
- Displacement (cc) 139.0
- Recommended Maximum RPM 4000-5000
- Fuel Management Carb
- Ignition CDI
- Lubrication System Wet sump
- Alternator Output 12V - 6A with Rectifier Regulator (Optional)
- Gear Ratio 2.08:1
- Starter System Manual Choke
- Operation Method Tiller Handle
- Trim and Tilt Method Manual Tilt
- Digital Gauges N/A
- Command Link Gauges N/A
- Transom Height (mm [inch]) S: 435 [17.1] | L: 562 [22.1]
- Dry Weight (kg) S: 27 | L: 28
