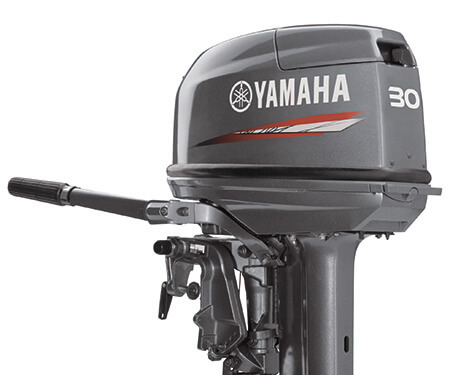

30H
Features & Rigging Componentry
496cc Two-Cylinder
Trusted two-cylinder two-stroke design is durable, powerful and extremely reliable.
100 to 1 Fuel Oil Ratio
Superior manufacturing techniques allow a leaner oil mixture, reducing smoke, odour and engine carbon build-ups, while also reducing oil consumption and running costs.
3 Year Warranty
All Yamaha two-stroke engines come with a three year warranty for added peace of mind.
Anti Corrosion
Yamaha's unique marine alloy, YDC-30, has been developed exclusively to handle the harshest of marine environments and is the result of years of Yamaha research and testing. YDC-30 delivers superior anti-corrosion properties that Yamaha outboards are legendary for.
Loop Charging
Loop-charged scavenging creates a circular fuel flow for efficient transfer of exhaust gas and even distribution of the air-fuel mixture. The result is greater combustion efficiency for excellent performance and better fuel economy.
Maintenance Free CDI Ignition
The capacitor discharged ignition system provides strong spark and precise timing, preventing plug fouling, improving starting performance and reducing maintenance.
Self-Sacrificing Anodes
Yamaha uses strategically placed aluminium and zinc anodes for maximum corrosion protection. These anodes are even larger than necessary, ensuring total effectiveness.
Shallow Water Drive
The shallow water drive system allows the engine to be quickly set and operated at a tilted angle allowing safe navigation through shallow water.
703 Side-Mounted Control
One of Yamaha's best selling controls, this mechanical remote offers comfort, simplicity and flexibility. With its new ergonomic grip, reversible right-hand or left-hand installation, and convenient trim and tilt operation, this control offers all-round functionality and value.
Genuine Yamaha Propellers
Prop choice makes a huge difference to outboard acceleration, top-end speed, handling and fuel efficiency. That is why Yamaha continues to push the technological boundaries in the design and development of our leading range of high performance props - ensuring every Yamaha outboard performs at its peak.
Alloy White F Series
These props deliver Yamaha's high-quality design and performance in a low-cost, lightweight propeller. They offer a good all-round choice for Yamaha outboards, coming in a wide range of sizes and pitches to suit every power requirement.
Technical Specification
- Engine Type 2-Stroke, In-line 2
- Bore x Stroke (mm) 59.5 x 59.5
- Fuel Tank Capacity (l) 24.0
- Displacement (cc) 496.0
- Recommended Maximum RPM 5000-5500
- Fuel Management Carb
- Ignition CDI
- OEDA Emission Rating 1
- Lubrication System Pre-mixing
- Alternator Output 12V - 6A with rectifier (W, WH) Optional with Rectifier (MH)
- Gear Ratio 2.08 : 1
- Starter System Manual (MH), Manual & Electric (W, WH)
- Operation Method Remote control (W), Tiller handle (MH)
- Trim and Tilt Method Manual tilt
- Digital Gauges
- Command Link Gauges
- Transom Height (mm [inch]) S (MH): 423 | L (MH, W, WH): 550
- Dry Weight (kg) S:(MH) 53 | L(MH): 55 | L(W, WH):58
