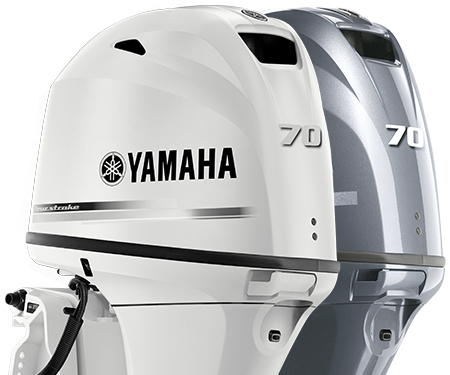

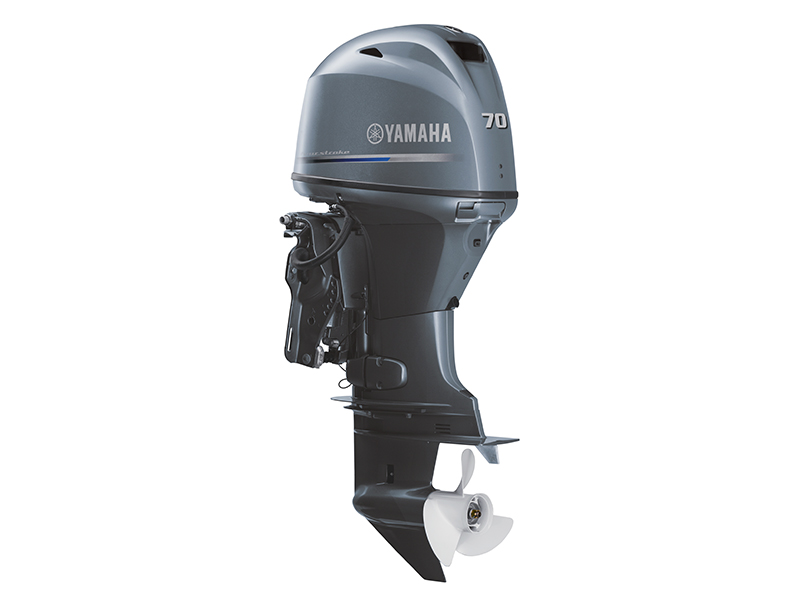

    The launch of Yamaha’s F70 changed customers’ expectations of outboards in this category forever.

    Beating in the heart of the F70 is a unique four-cylinder, 16-valve design activated by a single overhead camshaft. The 4-valves per cylinder valvetrain has dramatically increased this outboard’s volumetric efficiency, effectively transferring more air and exhaust at a more efficient rate. This makes the F70 more fuel-efficient, promotes a stronger torque band and makes the F70 lighter than all four-stroke and direct injected two-stroke competitors.

    The F70’s awesome performance offers huge versatility and makes it the perfect power option for a huge range of mid-sized fishing boats and pleasure craft.

    Features & Rigging Componentry

    Technical Specification

    • Engine Type 4-Stroke, 16 Valve SOHC In-line 4 Cylinder
    • Bore x Stroke (mm) 65 x 75
    • Fuel Tank Capacity (l)
    • Displacement (cc) 996.0
    • Recommended Maximum RPM 5300 - 6300
    • Fuel Management EFI
    • Ignition TCI
    • OEDA Emission Rating 3
    • Lubrication System Wet sump
    • Alternator Output 12V-16A with Rectifier Regulator
    • Gear Ratio 2.33:1
    • Starter System Electric
    • Operation Method Mechanical Control (Optional Tiller Handle Available)
    • Trim and Tilt Method Power Trim & Tilt
    • Digital Gauges Optional
    • Command Link Gauges Optional
    • Transom Height (mm [inch]) L: 534 [21.0] | X: 648 [25.5]
    • Dry Weight (kg) L: 119 | X: 121
    • Colours
