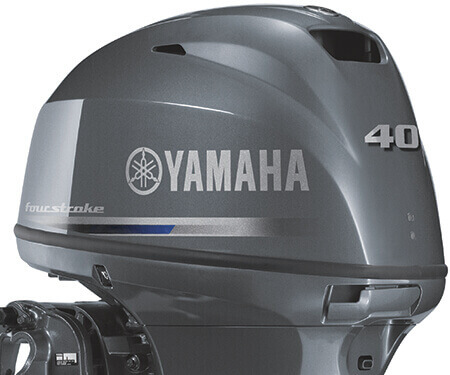

    Powerful, efficient and reliable, the F40 combines the benefits of Yamaha’s Multi-Point Electronic Fuel Injection (EFI) system, with a Micro-Processor Controlled System to deliver reliable turnkey hot and cold starting, improved fuel economy, incredible mid-range torque, lower emissions, and an overall smoother and quieter operation.

    The compact 747cc 3-cylinder, marine engine delivers the optimal balance of power, torque and refinement for exceptional versatility in both forward or tiller handle control applications. The forward control option can be matched with digital gauges, including Yamaha's feature packed Command-Link system. While the optional Multi-Function Tiller Handle comes standard with trim, shift, and throttle controls, as well as ‘start-in-gear’ protection and warning horn alerts, all integrated into the ergonomic handle.

    Features & Rigging Componentry

    Technical Specification

    • Engine Type 4-Stroke, SOHC In-line 3
    • Bore x Stroke (mm) 65 x 75
    • Fuel Tank Capacity (l)
    • Displacement (cc) 747.0
    • Recommended Maximum RPM 5500-6000
    • Fuel Management EFI
    • Ignition DC-CDI
    • OEDA Emission Rating 3
    • Lubrication System Wet-sump
    • Alternator Output 12V - 17A with Rectifier Regulator
    • Gear Ratio 2.00 : 1
    • Starter System Electric
    • Operation Method Mechanical Control (Optional Tiller Handle Available)
    • Trim and Tilt Method Power Trim & Tilt
    • Digital Gauges Optional
    • Command Link Gauges Optional
    • Transom Height (mm [inch]) S: 414 [16.3] | 536 [21.1]
    • Dry Weight (kg) S: 94 | L: 98
    • Colours
