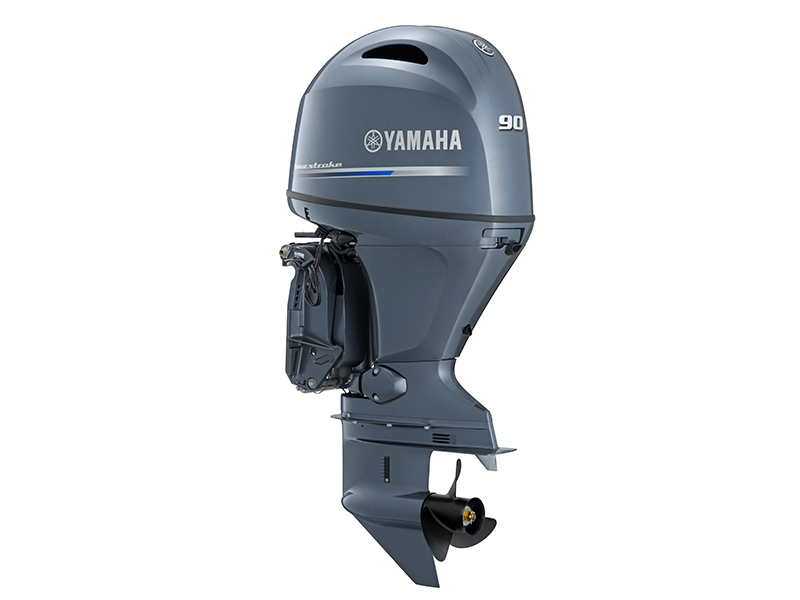

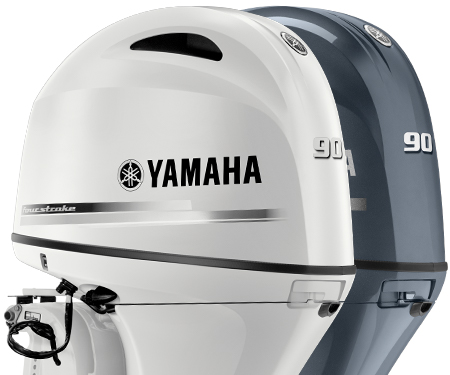

    F90

    The next-generation F90 is a direct-evolution of the previous 1.5 litre model, delivering increased fuel-efficiency, reduced-weight and improved performance. Filling an important place in Yamaha’s class-leading mid-range line-up, the new F90 delivers the perfect power option for the large number of Aussie built boats that have a maximum hull rating of 90 horsepower. The four-cylinder, 16-valve, SOHC 1.8L marine engine, is not only 10KGs lighter, but an increase in displacement over the previous generation 1.5L engine aids in a richer torque-band.

    The reduction in weight and improved compactness has been achieved through the adoption of a single overhead camshaft valve-train, delivers smooth and efficient performance only seen in 16-valve, four-cylinder engines of this size. The new F90 delivers a 10% improvement in fuel-efficiency and a significant reduction in noise, through improved engine unit rigidity, muffler redesign and the addition of an intake silencer. The Yamaha F90 is compatible with Yamaha’s range of Command-Link gauges, while its NMEA2000 compatibility allows for easy integration with third-party multi-function displays, GPS and fish finders.

    Features & Rigging Componentry

    Technical Specification

    • Engine Type 4-Stroke, 16 Valve SOHC In-line 4 Cylinder
    • Bore x Stroke (mm) 81 X 88.9
    • Fuel Tank Capacity (l)
    • Displacement (cc) 1832.0
    • Recommended Maximum RPM 5000 - 6000
    • Fuel Management EFI
    • Ignition TCI
    • OEDA Emission Rating 3
    • Lubrication System Wet sump
    • Alternator Output 12V - 35A with Rectifier Regulator
    • Gear Ratio 2.15 : 1
    • Starter System Electric
    • Operation Method Mechanical Control (Optional Tiller Handle Available)
    • Trim and Tilt Method Power Trim & Tilt
    • Digital Gauges Optional
    • Command Link Gauges Optional
    • Transom Height (mm [inch]) L: 516 [20.3] | X: 643 [25.3]
    • Dry Weight (kg) L: 162 | X: 166
    • Colours
