    F60

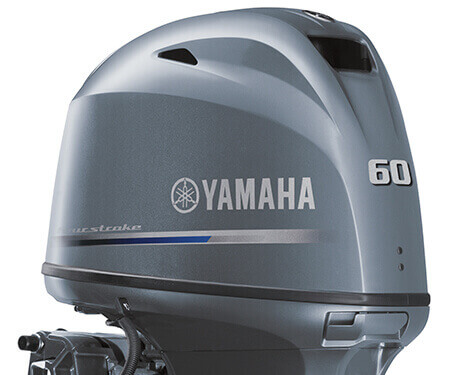

    The class-leading F60 has been hailed as one of the finest mid-range outboards ever produced. Brilliant fuel economy matched with great torque and power means versatility that is second to none.

    Within the F60 is a silky-smooth, 996cc, four-cylinder marine engine, that delivers an excellent power-to-weight ratio and exceptional refinement and fuel-efficiency. Out of the entire 4-cylinder 60 horsepower category, the F60 is the only Japanese Manufactured engine in its class; which boasts the reliability, refinement and quality that Yamaha engines are renowned for.

    Utilising Yamaha’s exclusive Multi-Point Fuel Injection System (EFI) and Electronic Control Module (ECM), the F60 delivers impressive power and torque, smooth and comfortable operation, low noise levels and emissions, and the best fuel-economy in its class.

    Features & Rigging Componentry

    Technical Specification

    • Engine Type 4-Stroke, SOHC In-line 4
    • Bore x Stroke (mm) 65 x 75
    • Fuel Tank Capacity (l)
    • Displacement (cc) 996.0
    • Recommended Maximum RPM 5000-6000
    • Fuel Management EFI
    • Ignition TCI
    • OEDA Emission Rating 3
    • Lubrication System Wet-sump
    • Alternator Output 12V - 16A with Rectifier Regulator
    • Gear Ratio 1.85 : 1
    • Starter System Electric
    • Operation Method Mechanical Control (Optional Tiller Handle Available)
    • Trim and Tilt Method Power Trim & Tilt
    • Digital Gauges Optional
    • Command Link Gauges Optional
    • Transom Height (mm [inch]) L: 527 [20.7]
    • Dry Weight (kg) L: 113
    • Colours
